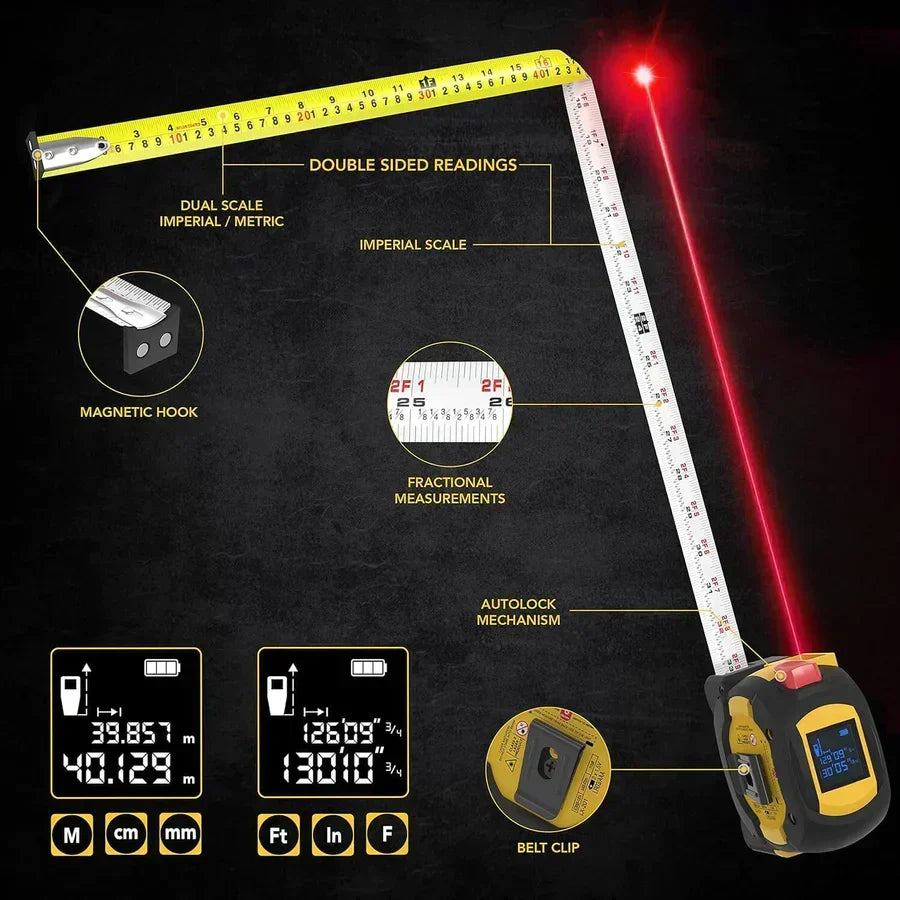

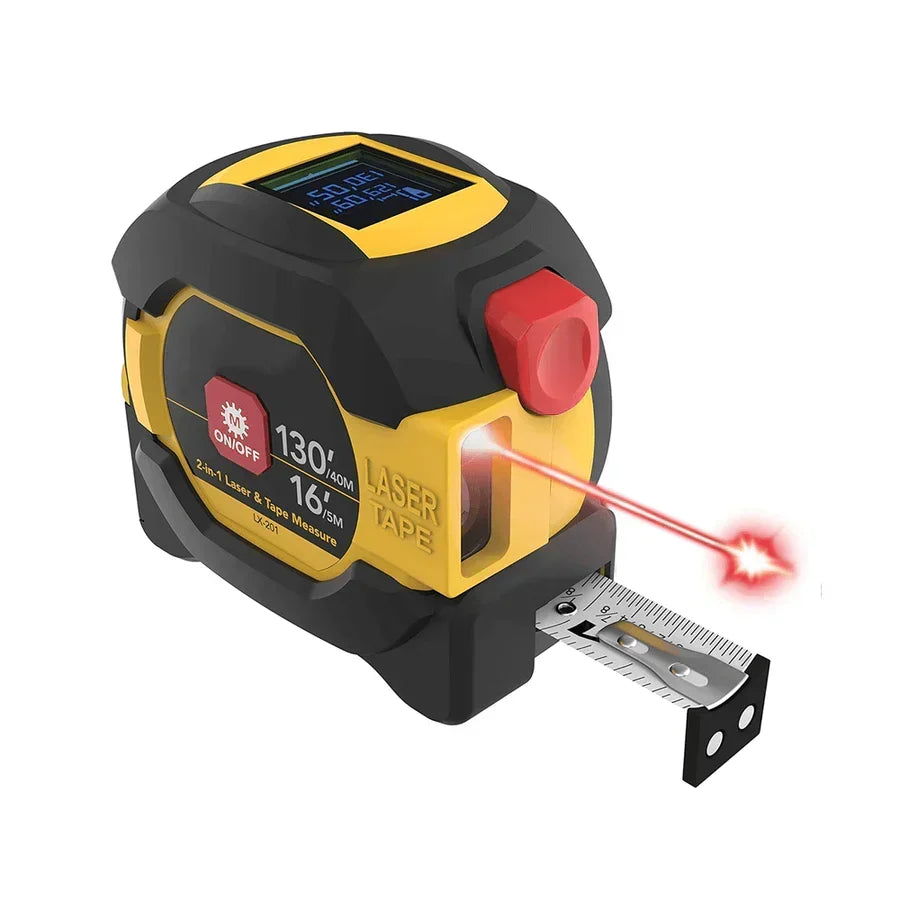

Measure short distances, long spans, and alignment lines with one 3-in-1 digital laser measuring tape. It combines a 5 m tape measure, a laser rangefinder, and a laser cross-marking tool for DIY work, renovation, construction, and professional measuring tasks.
With a button press, the laser makes it easier to measure high ceilings and other areas that are difficult to reach directly.
Three Measurement Tools In One
The integrated tape handles nearby measurements up to 5 m, while the laser rangefinder supports longer measurements up to 40 m or 60 m, depending on the selected version. The laser cross-marking function projects horizontal and vertical reference lines for renovation and installation work.
The backlit display keeps readings visible in dim spaces, and the memory function saves up to 20 measurement groups for later reference.
Built-In Tape Measure

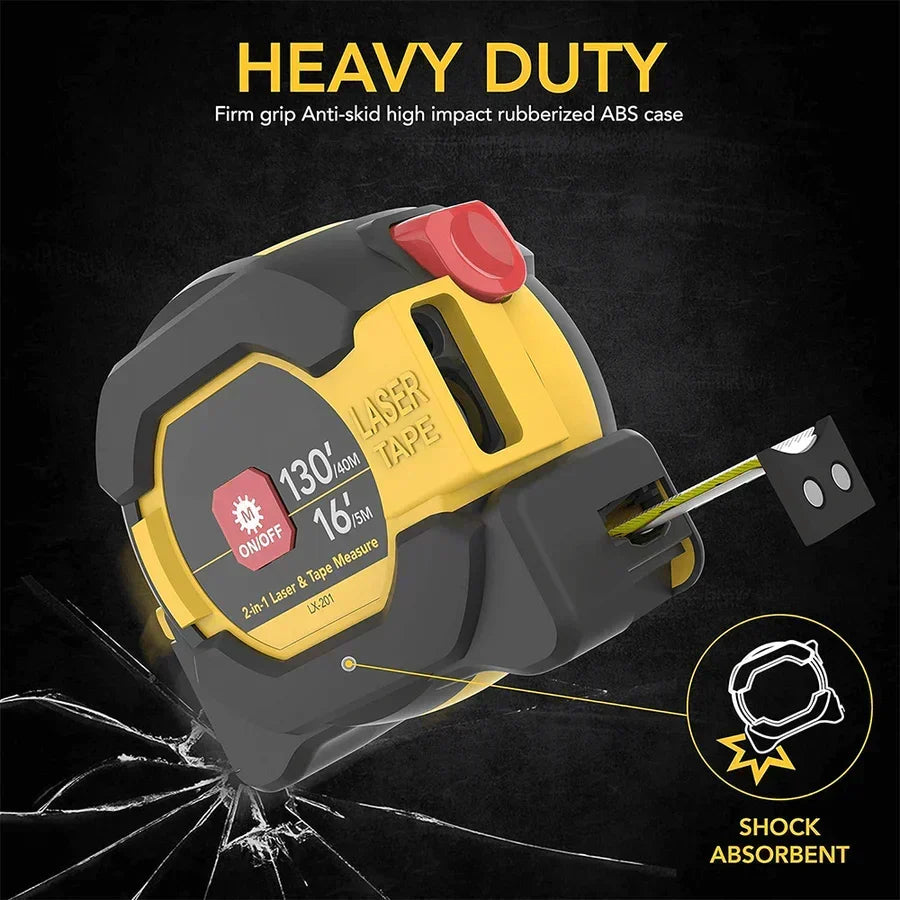

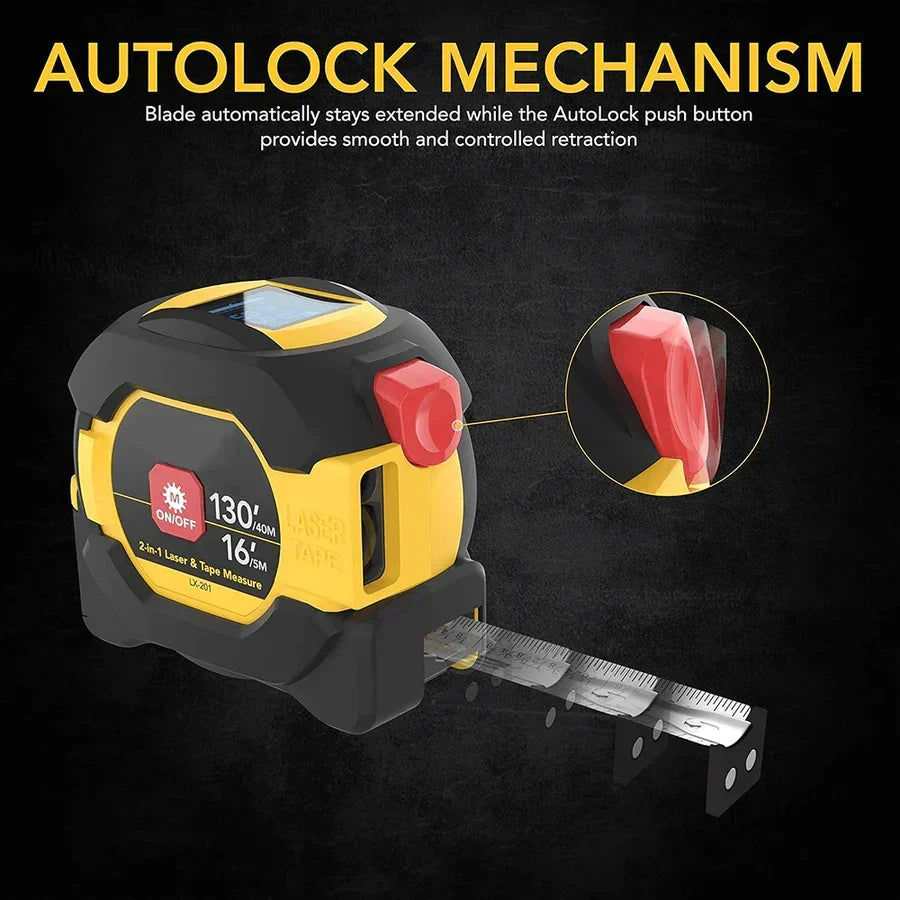

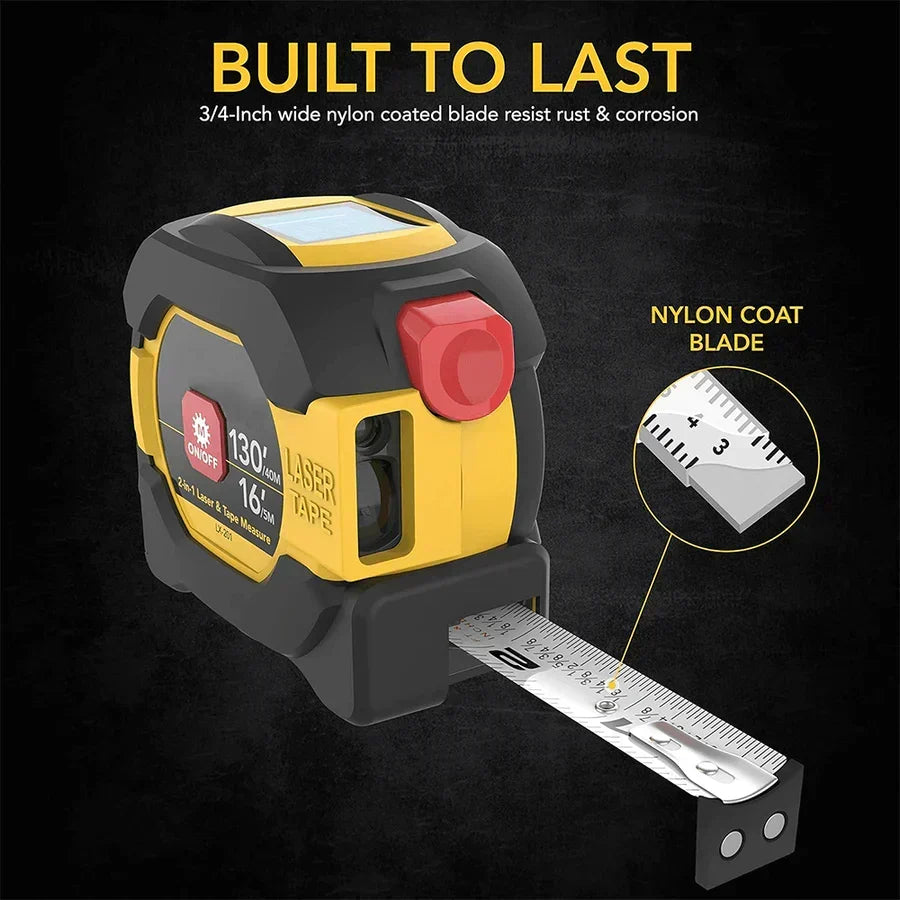

The housing combines ABS and TPR for a non-slip, impact-resistant, dust-resistant outer shell. The coated manganese-steel ruler belt locks automatically when extended; pressing the release button allows it to retract automatically, helping reduce accidental finger injuries.
It suits pipeline and road engineering, housing projects, construction, woodworking, and general renovation tasks.
Measurement Functions
- Single and continuous measurement
- Area measurement
- Volume measurement
- Pythagorean measurement
Specifications
- Materials: ABS, TPR, and coated manganese steel
- Battery: 2 × 1.5V AAA batteries, not included
- Laser range options: 40 m or 60 m
- Resolution: ±2 mm
- Measurement units: m, in, and ft
- Laser type: 635 nm ≤1 mW
- Automatic laser shutoff: 30 seconds
- Automatic power shutoff: 180 seconds
- Stored readings: 20 groups
- Tape range: 0–5 m
- Minimum tape scale: 1 mm
- Tape width: 19 mm
- Scale systems: Imperial and metric
- Ruler belt: 65 manganese steel
- Working temperature: 0–40℃
- Storage temperature: -10℃ to 50℃
