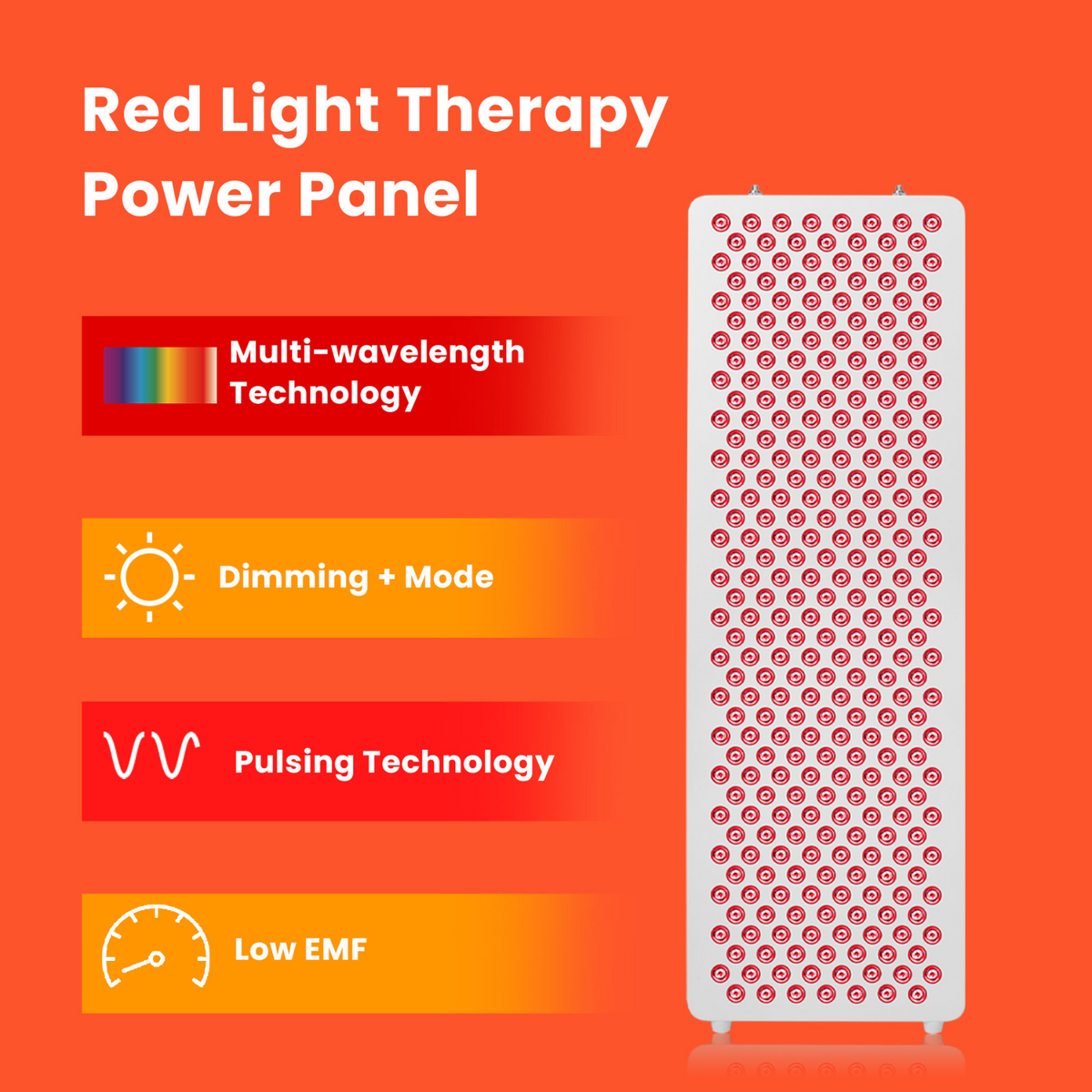

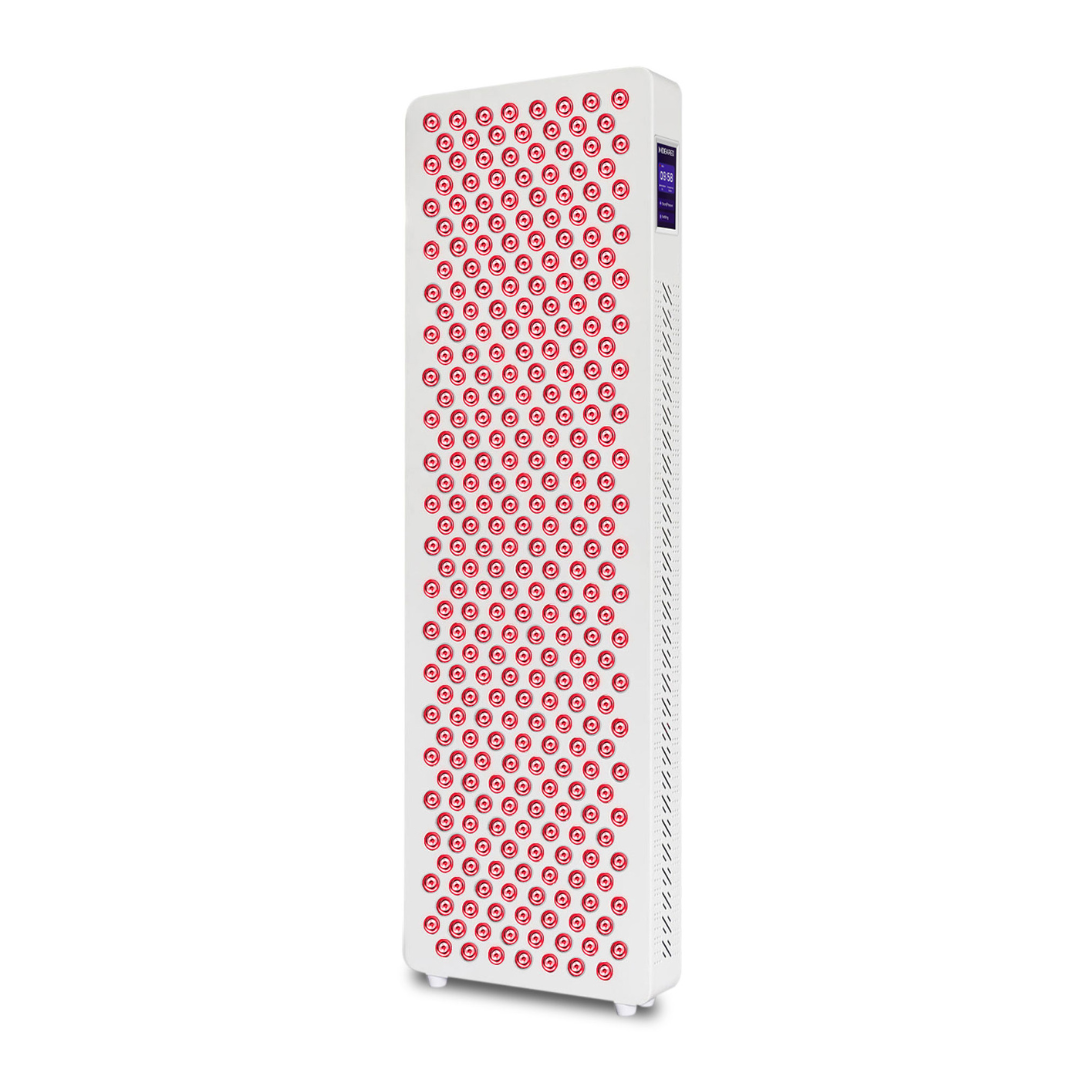

Designed for broad body coverage, the Red Light Therapy Panel MEGA combines 300 dual-chip 5-watt LEDs with red and near-infrared wavelengths for high-intensity sessions across the torso, front or back. At a distance of 3 inches, it delivers up to 216 mW/cm² of measured light intensity.
The panel uses flicker-free LEDs across 630nm and 660nm red light, plus 810nm, 830nm, and 850nm near-infrared light. Its wide format and 50% greater LED count than the MAX panel are intended to cover larger treatment areas, while ultra-low EMF construction supports comfortable use.

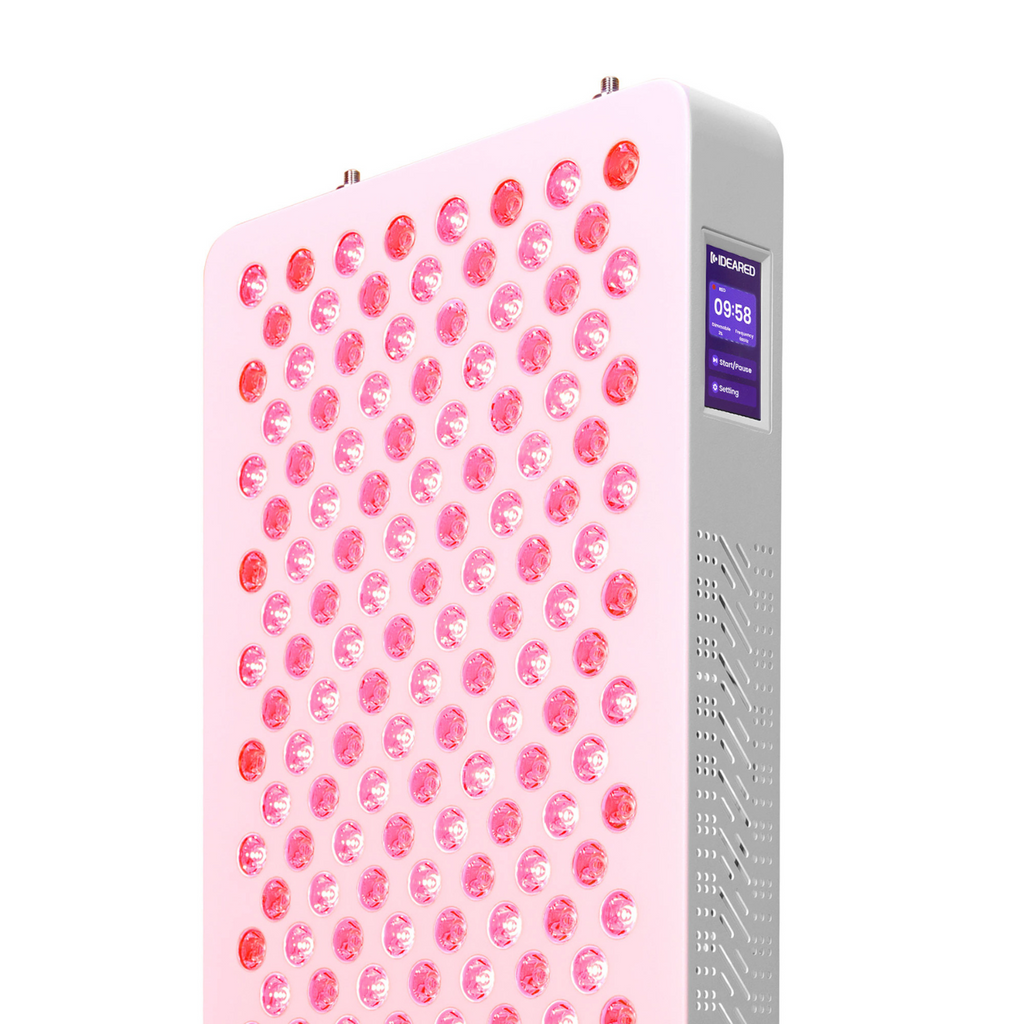

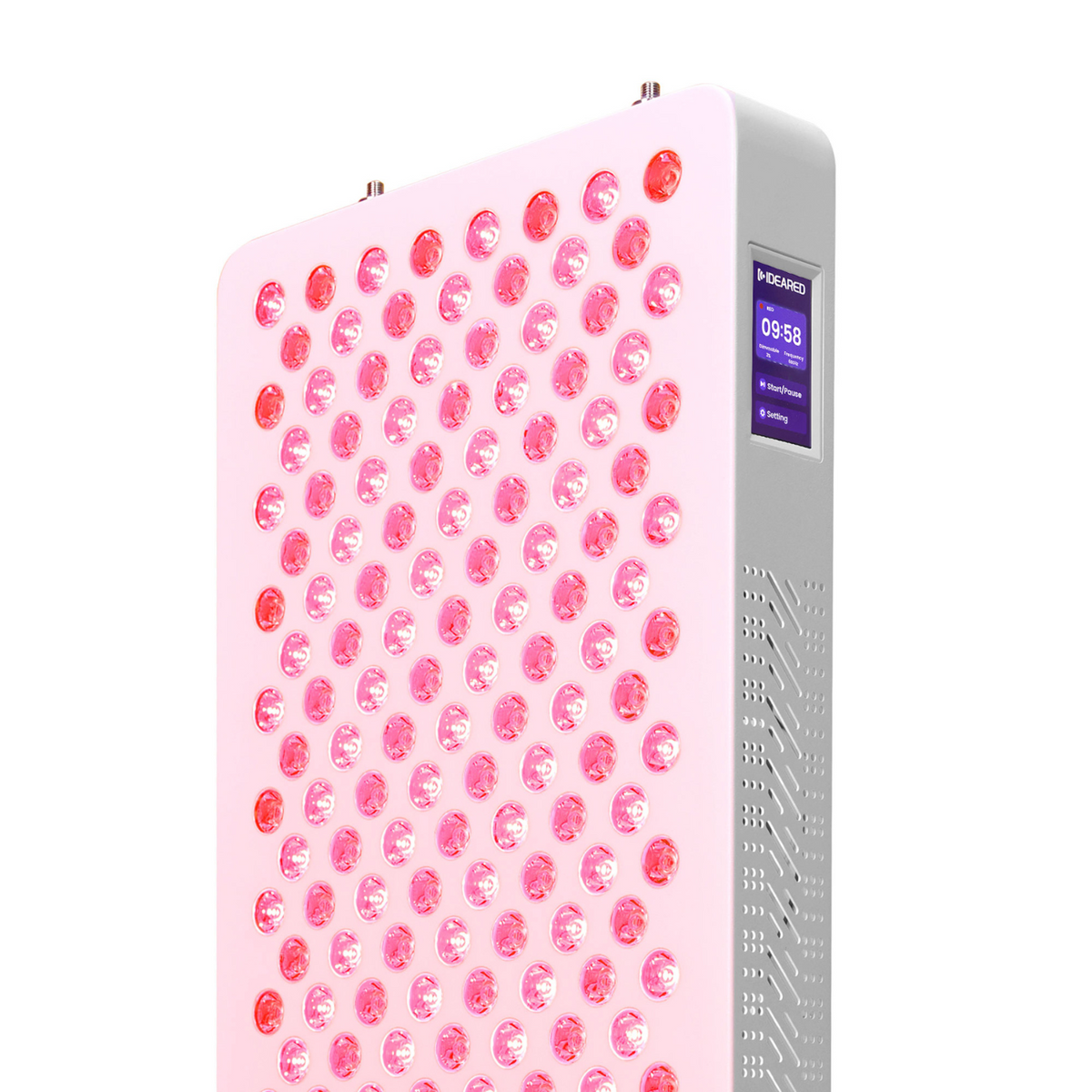

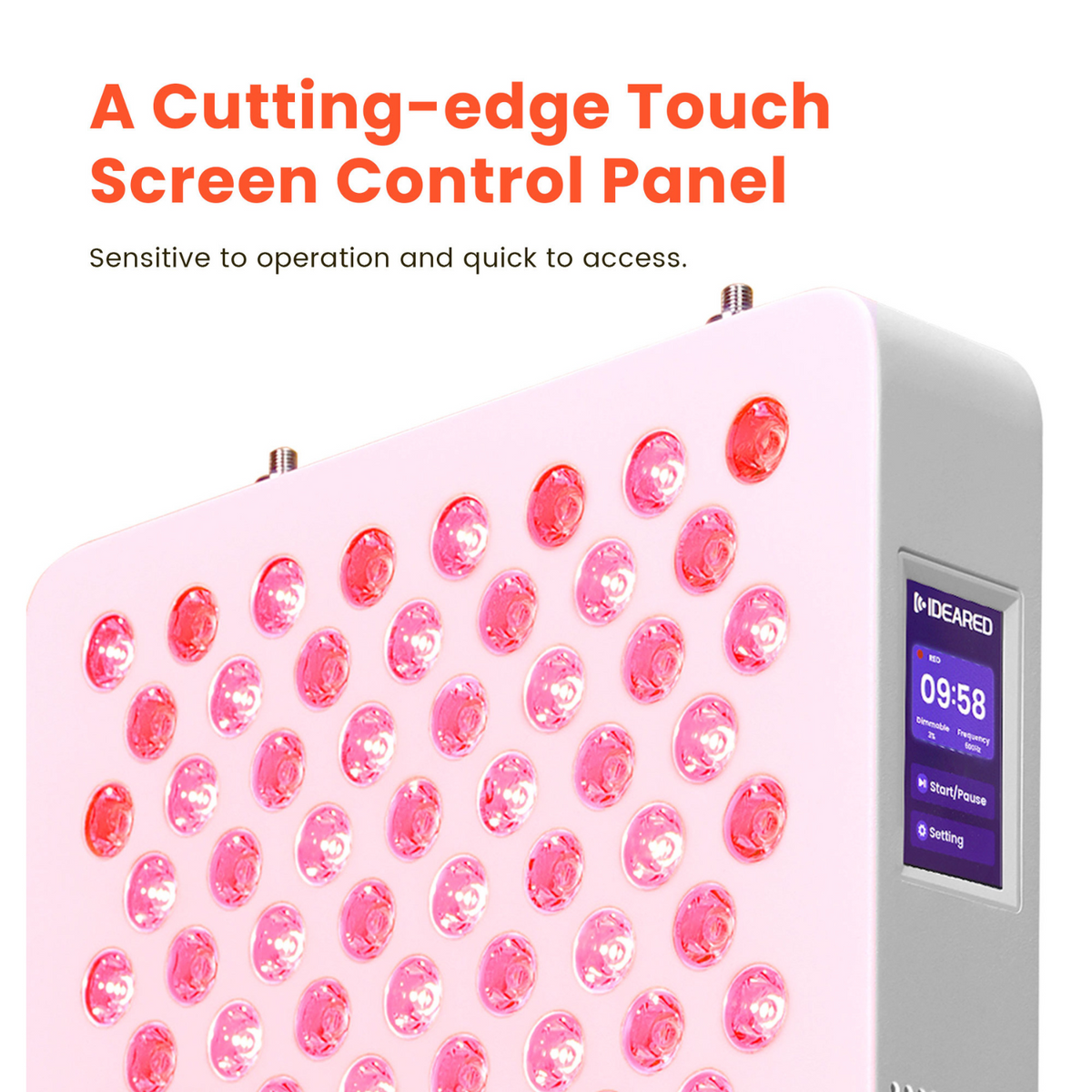

Touchscreen Control
An integrated touchscreen provides direct control over the panel’s operating functions. Adjust brightness from 1% to 100%, select continuous or pulsed operation, and set the session length with the built-in timer.
Adjustable Pulsing
Continuous-wave operation is available alongside pulse-rate adjustment from 1Hz through 10,000Hz. This lets you tailor the operating mode and pulse setting to your preferred session format.
Timer And Remote
The running display shows the remaining session time together with the selected pulse rate and brightness. The timer can be set in one-minute increments, with a default setting of 10 minutes and a maximum duration of 30 minutes.

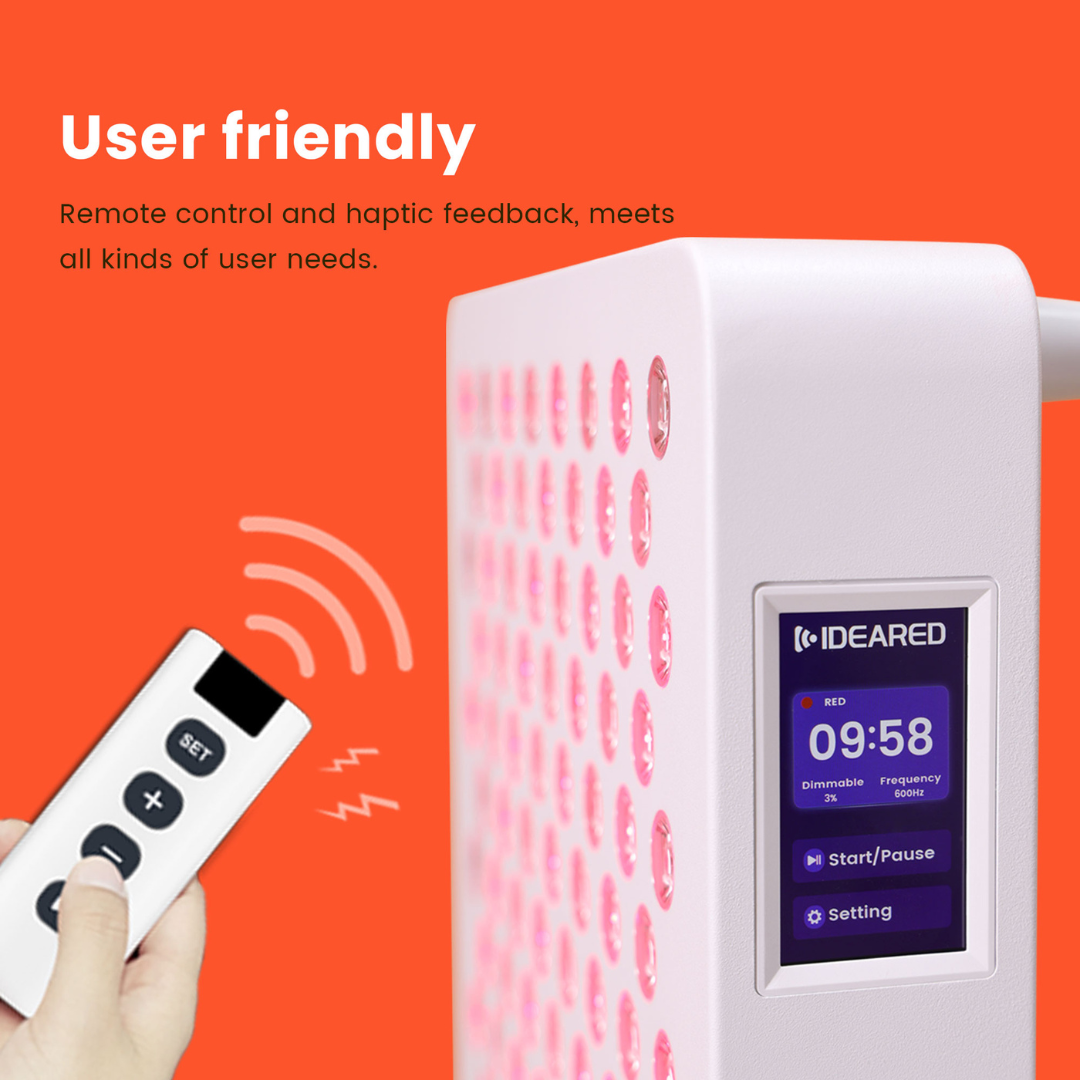

The included 2.4G remote provides control of the panel’s functions from a distance and can also operate multiple panels from one remote.
Specifications
- 300 LED chips: 30 × 630nm, 120 × 660nm, 16 × 810nm, 16 × 830nm, 106 × 850nm, 6 × 1060nm, and 6 × 480nm
- Input voltage: 100–240V AC
- Frequency: 50/60Hz
- Lens angles: 30° and 60°
- Light density: >130mW/cm²

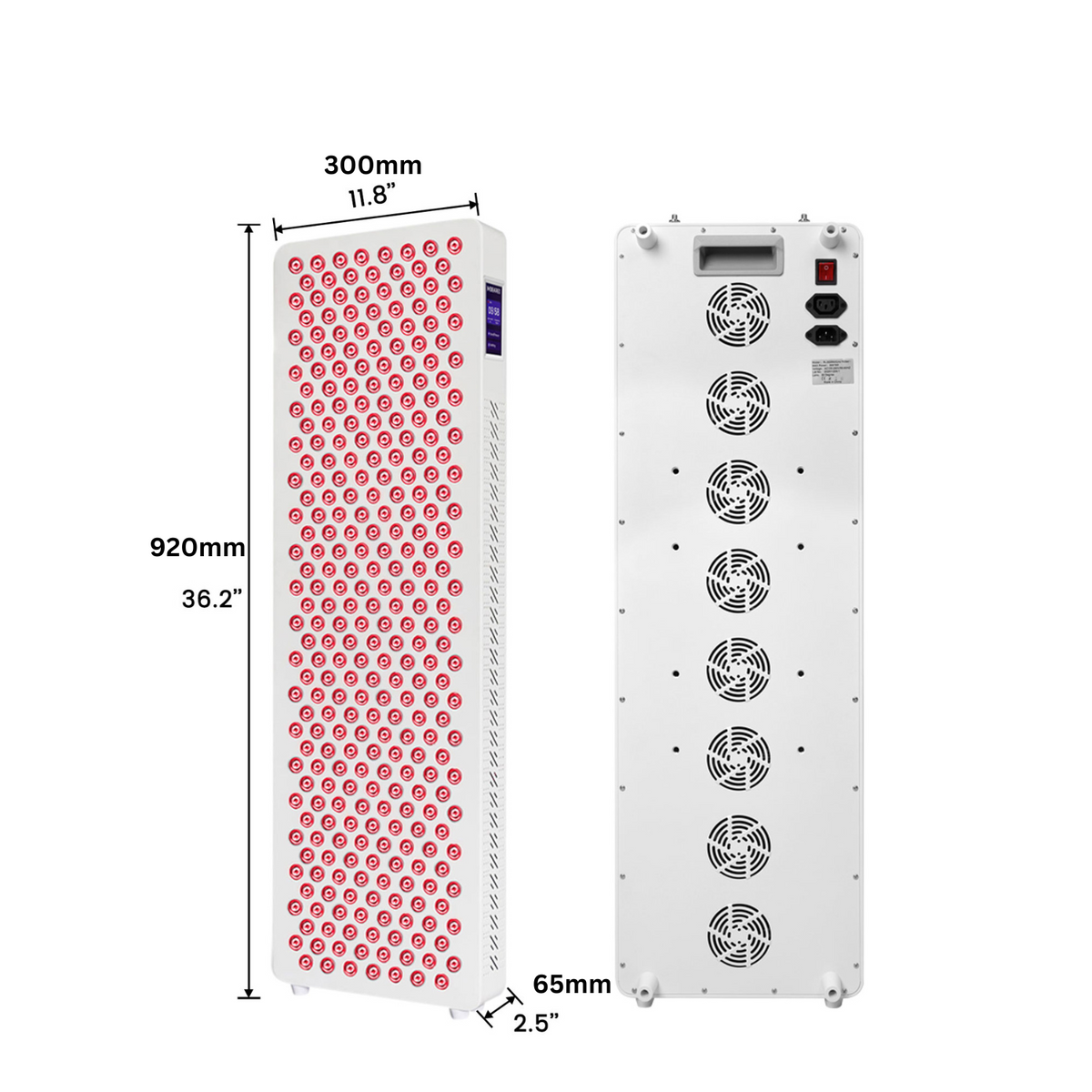

- Dimensions: 920 × 300 × 65mm
- Spectrum: 630nm, 660nm, 810nm, 830nm, and 850nm, or customized
- Pulse range: 1–10,000Hz
- Dimming range: 1–100%
- Gross weight: 13.5kg per unit
- Actual power: 413W/540W
- Flicker-free operation
- FDA registered

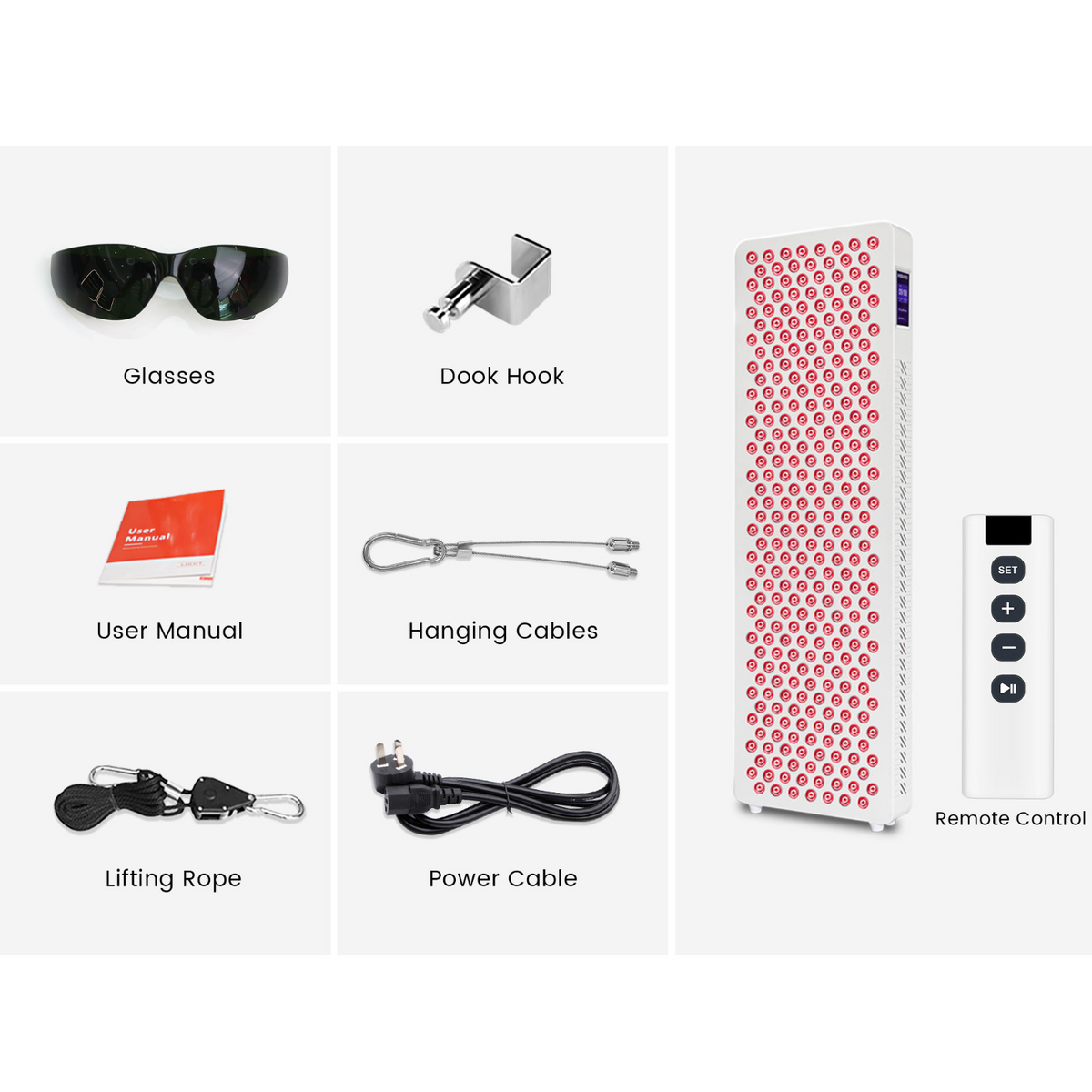

What’s Included
